Rim,tire, Suspension setup
- Thread starter jham
- Start date
Playsinsnow
Member
- Nov 17, 2012
- 9,727
TBLS said:
What's the goal? Budget?
Checkout www.Offroadtb.com
A lit of info to peruse and get bite by the mod bug.
Playsinsnow
Member
- Nov 17, 2012
- 9,727
Do some homework before posting any technical questions over there. A lot has been answered and they don't take to newb questions too well, especially vague questions. I'd go broke if I joined over there
There is a lot of info here and some archived at trailvoy.com
Do some homework, ask here and ortb.com, and post pics!:thumpsup:
There is a lot of info here and some archived at trailvoy.com
Do some homework, ask here and ortb.com, and post pics!:thumpsup:
TBLS
Member
- Dec 29, 2013
- 1,075

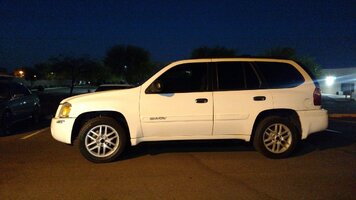

I will post pics for sure. I've owned my tb for over 2 years and have wanted to lift it. I've already thrashed around in mud and on rocks with it. I am just slower and more easily confused than most lol. And no I ain't no blonde. Just have a hard time. I really wanna get going on it. I keep hearing I can do it than can't do marks 3" suspension with stock parts but I have a gut feeling I cannot. Thank you so much for being so kind and patient with me. I will definitely be doing what I can when I can and put pics up!!!
bbarker89
Member
- Dec 19, 2013
- 156
Playsinsnow
Member
- Nov 17, 2012
- 9,727
blazinlow89
Member
- Jan 25, 2012
- 2,088
Playsinsnow
Member
- Nov 17, 2012
- 9,727
Flipped Upper Control Arm. Gm designed our upper ball joints for tighter turning radius robbing the lifting crowd of downward articulation. There are threads on max tire sizes and the mods needed to go bigger. So some flip and swap their UCA's so the tire clears the bj and adds to the flex.
I must have missed this thread.
Lots of stuff to list, but essentially a Belltech 2/3 kit + DJM front strut mounts modified for a 5/5 drop.
22" Factory Reproduction SS rims, 265/35/22 tires
Lots of custom work to get it this low, and then more to get it to ride smoothly.
Can provide more info if anyone is interested, but most of it is already in my build log.
Lots of stuff to list, but essentially a Belltech 2/3 kit + DJM front strut mounts modified for a 5/5 drop.
22" Factory Reproduction SS rims, 265/35/22 tires
Lots of custom work to get it this low, and then more to get it to ride smoothly.
Can provide more info if anyone is interested, but most of it is already in my build log.
Let's see if I can remember everything.
Front Suspension:
DJM Upper Control Arms, cut and rewelded further out to fix camber and to fix ball joint angle
DJM 2" Drop Strut Mount
Belltech Drop Strut with no spacers
Bump stops removed
Energy Suspension Sway Bar Bushings
Energy Suspension Sway Bar Endlinks shortened
Fenders cut to allow Upper Control Arm travel
Aftermarket Washer Tank / Coolant Overflow Tank relocated since the Upper Control Arms were hitting them
Rear Suspension:
Belltech 3" Drop Springs cut down to 5"
Belltech Drop Shocks
DJM Rear Swaybar
Suspension MAAX Endlinks shortened to 2.5" (3rd set, finally found a good one)
Airlift Helper Bags set to ~30 psi
Mini C-notched frame
Spohn 4-link Adjustable Upper and Lower Control Arms
Spohn Adjustable Panhard Bar
Exhaust Turn Downs before the Axle
I think that's everything
Front Suspension:
DJM Upper Control Arms, cut and rewelded further out to fix camber and to fix ball joint angle
DJM 2" Drop Strut Mount
Belltech Drop Strut with no spacers
Bump stops removed
Energy Suspension Sway Bar Bushings
Energy Suspension Sway Bar Endlinks shortened
Fenders cut to allow Upper Control Arm travel
Aftermarket Washer Tank / Coolant Overflow Tank relocated since the Upper Control Arms were hitting them
Rear Suspension:
Belltech 3" Drop Springs cut down to 5"
Belltech Drop Shocks
DJM Rear Swaybar
Suspension MAAX Endlinks shortened to 2.5" (3rd set, finally found a good one)
Airlift Helper Bags set to ~30 psi
Mini C-notched frame
Spohn 4-link Adjustable Upper and Lower Control Arms
Spohn Adjustable Panhard Bar
Exhaust Turn Downs before the Axle
I think that's everything
With the height I'm at, the bumpstops were pretty much getting in the way and restricting suspension travel. For a normal ~2" drop, just cutting them shorter should be perfectly fine.
And for installing your UCA you shouldn't have to do much modification. You will most likely have to pry the sheet metal blocking the bolts towards the front of the truck, but other than that you should be ok.
And for installing your UCA you shouldn't have to do much modification. You will most likely have to pry the sheet metal blocking the bolts towards the front of the truck, but other than that you should be ok.
Sleepy_Jr
Member
- Dec 29, 2011
- 157
24" Onyx black and machined wheels with 275/30/24 Lexani tires. Spring tech 2-3 drop springs. Belstein drop struts and nitro drop shocks. Airlift bags for support.
jrSS
Member
- Dec 4, 2011
- 3,950
Front
Belltech lowering struts
Tonys djm upper a arms
Back
30.5 lowering spring conversion w/ airlift helper bags
Belltech 30.5 shocks..spohn panhard bar
Wheels
22" chrome factory reproductions
Tire
265 40 22
(Winter set up)
Factory 20's powder coated black
w/ 255 50 20 rubber
Belltech lowering struts
Tonys djm upper a arms
Back
30.5 lowering spring conversion w/ airlift helper bags
Belltech 30.5 shocks..spohn panhard bar
Wheels
22" chrome factory reproductions
Tire
265 40 22
(Winter set up)
Factory 20's powder coated black
w/ 255 50 20 rubber
Attachments
DARKASS04EXT
Member
- Nov 21, 2011
- 193
Finally after tons of set backs i was able to get my suspension, brakes and some appearance items done.
What was replaced:
Front:
belltech adj struts
tonys modified upper a-arms
new ball joints
new lower a-arm bushings
Rear:
Belltech rear springs w/1" spacer (for added weight of EXT)
Belltech shocks
Spoon adj panhard bar
Brakes:
cross drilled/slotted rotors & ceramic pads
color matched lower trim, front bowtie, wiper cowl, etc
tinted and clear coated tail lights, 3rd brake light & mirror turn signals
What was replaced:
Front:
belltech adj struts
tonys modified upper a-arms
new ball joints
new lower a-arm bushings
Rear:
Belltech rear springs w/1" spacer (for added weight of EXT)
Belltech shocks
Spoon adj panhard bar
Brakes:
cross drilled/slotted rotors & ceramic pads
color matched lower trim, front bowtie, wiper cowl, etc
tinted and clear coated tail lights, 3rd brake light & mirror turn signals
Snailblazin'
Member
- Dec 9, 2011
- 164
Is the rack still on? Can't tell from the pic. That's a deadly weiner dog! Probably lots of polishing required to get that black to look so smooth.
HARDTRAILZ
Moderator
- Nov 18, 2011
- 49,665
HARDTRAILZ
Moderator
- Nov 18, 2011
- 49,665
DARKASS04EXT
Member
- Nov 21, 2011
- 193
Snailblazin' said:Is the rack still on? Can't tell from the pic. That's a deadly weiner dog! Probably lots of polishing required to get that black to look so smooth.
Rack was removed 6mths after getting it. Only rack allowed on my Tb is the wifeys, when shes laid across the hood.
bwelfringer
Member
- Apr 5, 2015
- 4
I have the belltech 2/3 drop i was worried about rubbing issue's if i put the 22 replicas and 265/40/22? you guys have any issue's?
BlazingTrails
Member
- Apr 27, 2014
- 19,409
You asked the same question two days ago in another thread and got an answer. You need to read the thread, link below. BT has been kind enough to answer your question twice.bwelfringer said:
http://gmtnation.com/forums/index.php?/topic/742-Lowering-4X4......
Were did you get the off road bumper

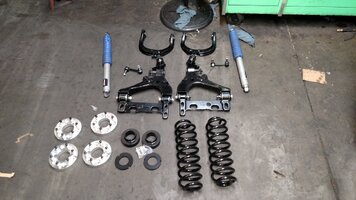

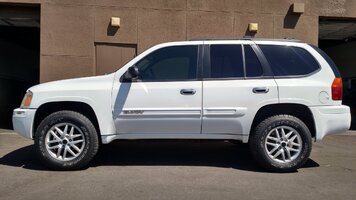

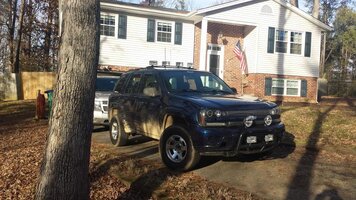

MarkMC's 2.5" Suspension lift kit
MarkMC's 3" Body lift kit
Bilstein HD front struts
Skyjacker Shocks 8030 P/N SKYN8030
88 Front springs
Z71 rear springs
1.5" adapters
Helo Series HE835 Wheel
285/70/17 BFG KM2's
Flipped Upper Control Arms
tricguy007
Member
- Dec 7, 2011
- 131
xavierny25
Member
Those wheel spacers don't seems to be hub centric.... most guys here and on the ortb forum would disapprove of them.
HARDTRAILZ
Moderator
- Nov 18, 2011
- 49,665
As long as they fit on the hub of truck tight is all that really matter. I have never had a set on the truck with a hub lip, just flat like that. If you install your wheel properly it is of no concern.
tricguy007
Member
- Dec 7, 2011
- 131
They fit the hub tight just no lip for the rim but haven't had any issues yet but only have a few hundred miles on them
HARDTRAILZ
Moderator
- Nov 18, 2011
- 49,665
I got 100K miles like that and no issues at all. I swap wheels too much to worry about a lip for a wheel.
