What are you taking about? There are no better mods than LEDs!Trkdrvremt said:
LED Mod Thread
- Thread starter Blckshdw
- Start date
Trkdrvremt
Member
Trkdrvremt
Member
Ok got some questions on this..BlazingTrails said:Hey guys just wanted to ad that on single LEDs to 14.4 volts I recommend 680 ohm 1/4 watt resisters. If you use the maximum current the LEDs will not last long. Also the rear window switches do not need resistors because the board already has reduced voltage. The rear a/c switches have to be reworked because the had the stock bulbs ran in series for swb. I have several pics in my build thread from my led swaps.
Carry on
For the rear a/c : is that actually an ac unit or just a fan? And if it's run in series does that mean one resistor for all the bulbs?(not one per bulb)
The rear door switch: I thought I read somewhere that it uses smd? Is that correct?
For modding the rear AC controls, it really doesn't matter what it is, or what it's for, you're only concerned with where the lights are. And yes, if they are in series, then 1 resistor would take care of both bulbs.Trkdrvremt said:
If your rear window switches have SMD LEDs, then BTs statement is confirmed. The voltage has already been dropped at that location to accommodate an LED, since an LED is already there.
Trkdrvremt
Member
Hi Guys Just a small question as i will start my Cluster LED Conversion this weekend and i will replace a defected Stepper motor as well; is the LED conversion needs 12 LED Bulbs for the Whole DIC Cluster as i have seen in Aarkon pictures as i only have 10 bulbs so i believe i will have to skip 2 then
Theblackarrow said:Hi Guys Just a small question as i will start my Cluster LED Conversion this weekend and i will replace a defected Stepper motor as well; is the LED conversion needs 12 LED Bulbs for the Whole DIC Cluster as i have seen in Aarkon pictures as i only have 10 bulbs so i believe i will have to skip 2 then
You answered your own question.
Trkdrvremt
Member
Ahhhhhhh.... It just won't stop.... Lol
Trkdrvremt
Member
And just as I was making progress... I lost two pads on one of the bulb solder points,on the rear fan switch [emoji30]. Is this fixable or am I buying another switch?
Mounce
Member
Pretty sure you screwed the pooch on that one.
If you have some small wire lying around you could make a jumper from one bulb over to where the other is supposed to be and then hot glue/epoxy the LED in place.
If you have some small wire lying around you could make a jumper from one bulb over to where the other is supposed to be and then hot glue/epoxy the LED in place.
Trkdrvremt
Member
Yeah I did....
Ahh ok wasn't sure if that was way to do it.. That I will try in the morning... Thanks for the help...
Ahh ok wasn't sure if that was way to do it.. That I will try in the morning... Thanks for the help...
Mounce
Member
I would also try to insulate the bulb from where the pads used to be though, don't want any shorts.
Trkdrvremt
Member
OK then which two bulbs you recommend me to skip as i don't want to change any stock bulb rather than the Gauges bulbs itself or other bulbs colors will look ugly with the new blue LED ?Blckshdw said:
Midnyteryder196
Member
Honestly.. I would recommend some 3528 smd strips to line the cluster. Not for sure what shipping to you would be but you can get a 16ft roll on eBay for under 15 bucks.Theblackarrow said:
So do You recommend this to a LED 5050 SMD Bulbs? i don't need something that is too bright to blind me at night LOLMidnyteryder196 said:
We can't tell you what is going to appeal to your own eyes. It's like swimming. We can't tell you if you're going to like how the water feels, you just have to get in and see for yourself. We've given you a lot of recommendations, but ultimately you have to take a chance and try something. Maybe you like how it turns out, and you're good to go. Maybe you don't, and you want to try something else. That happens with modding all the time.
Aarkon
Member
- Nov 6, 2013
- 5,607
swapped all the smds in the tb now to do the voy will get pics tonight
Darkrider_LS
Member
- Jan 25, 2013
- 9,332
Aarkon
Member
- Nov 6, 2013
- 5,607
sorry a little late but here is the tb mirror
Yeah, the way the passenger air bag message became non existent after I put blue SMDs behind mine, is what prompted my passenger ejector seat indicator mod.
Different wavelengths of light between what's emitted by the LED and what's permissible by the translucent film. Same thing as putting blue LEDs in the manual HVAC behind the sliders, and the red stops showing up. So you either have to put white or orange SMDs in there, or change the color of the plastic overlay so it allows blue (or any other color) to shine through.
Grimor
Member
- Mar 28, 2013
- 954

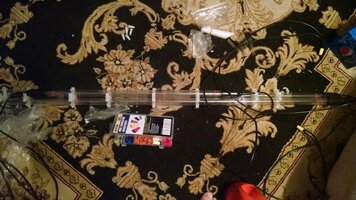

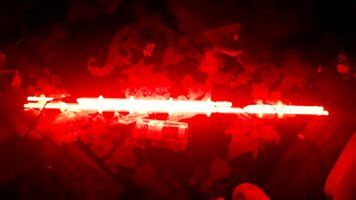

not leds, and still undecided on what i want to do, but i wired up my new 20 year old neon underbody lights for the first time. I've always had a thing for neon.
maybe I'll put them under the hood, that'd look pretty sweet.
4 tubes
maybe I'll put them under the hood, that'd look pretty sweet.
4 tubes
Trkdrvremt
Member
Grimor
Member
- Mar 28, 2013
- 954

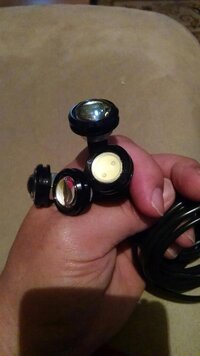

added some led under the front bumper
only one side is on in the pics.

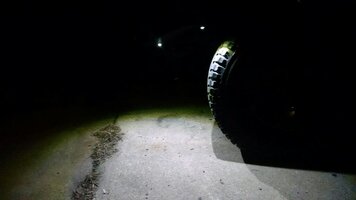

i think they look good and a usable light pattern for off road
only one side is on in the pics.
i think they look good and a usable light pattern for off road
djthumper
Administrator
Grimor
Member
- Mar 28, 2013
- 954
djthumper
Administrator
Grimor
Member
- Mar 28, 2013
- 954
I'll try to track down where i got em when i get on my laptop
EDIT: These are the lights I bought: http://www.amazon.com/gp/product/B009DC790A
Looks like these http://www.amazon.com/Universal-Bumper-Motorcycle-Daytime-Running/dp/B00FEZEVQK and these http://www.amazon.com/Universal-Bumper-Motorcycle-Daytime-Running/dp/B00MVMRS6O
For the price, I'll probably b getting some more.
EDIT: These are the lights I bought: http://www.amazon.com/gp/product/B009DC790A
Looks like these http://www.amazon.com/Universal-Bumper-Motorcycle-Daytime-Running/dp/B00FEZEVQK and these http://www.amazon.com/Universal-Bumper-Motorcycle-Daytime-Running/dp/B00MVMRS6O
For the price, I'll probably b getting some more.
Grimor
Member
- Mar 28, 2013
- 954

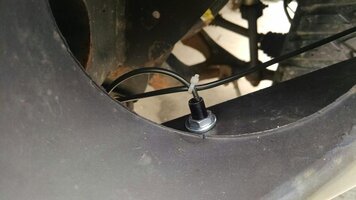

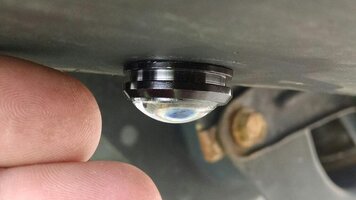

all the holes are notched so i don't need to cut the harness if they need removed, like when i repaint the bumper.

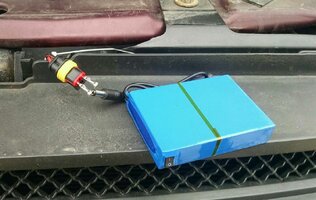

harness is just routed up top until I figure out how i was to wire em. everyone should have one of these little battery packs
Grimor
Member
- Mar 28, 2013
- 954
eh, is a couple of years a while? lolAarkon said:
mcsteven
Member
- Apr 18, 2012
- 6,584
Damn, those are nice. At the correct angle they'd make some nice back up / maneuvering lights. Guess you had that idea for trail lights, too. An account I just picked up where he wants to trade some has some like this. He also carries ANZO products, so I'm looking at something like this and making a mount so it'll attach just below my rear license plate and be triggered by the reverse lights. I wouldn't pay that much for it (about $40) cash but he keeps adding things he wants so his bill gets higher and higher. These are 8.5" wide.
http://www.anzousa.com/daytime-running-light-8-5-w-28-hi-powered-led-smoke.html
I checked the wiring on the box. It's got 3 wires, so I was wondering. Seems it has a built in relay. It shows black wire to ground, white to 12v+, and it recommends yellow to a source on the ignition. Not sure why it would not just be white to ignition, but I guess so it can be shut off like a switchback or other function.
http://www.anzousa.com/daytime-running-light-8-5-w-28-hi-powered-led-smoke.html
I checked the wiring on the box. It's got 3 wires, so I was wondering. Seems it has a built in relay. It shows black wire to ground, white to 12v+, and it recommends yellow to a source on the ignition. Not sure why it would not just be white to ignition, but I guess so it can be shut off like a switchback or other function.
jstrut
Member
- Jul 31, 2013
- 87
