LED Mod Thread

So I have been itching for a while to get some DRL LEDS on the front of my TB, where would be the best place to mount them, cause I don't think they look really good near the headlights with its design......

Where else.....

Also hoping to get the interior LED strips in the car. Ran out of the strip, still debating whether to get the RGB ones or just plain blue to match my dash! :Banghead:

$ Khalid ! 9130 said:
where would be the best place to mount them
Click to expand...

We would have just as good a shot of telling you which type of woman you'd want to date, what food will taste good, or what style of clothes you think will fit you best. This is something you'll have to decide for yourself, by trial and error.

  • Like
Reactions: $ Khalid ! 9130, Redbeard, Matt and 2 others
Aside from not being bright enough due to the strips I used, I liked the setup of mine. But then, it wasn't exactly an easy thing to do.

Silverado is a whole 'nother matter. The easy route doesn't look great, and the way I think would look good is also looking to be rather hard to do and very expensive lol. Hm.

  • Like
Reactions: Blckshdw and $ Khalid ! 9130
Blckshdw said:
We would have just as good a shot of telling you which type of woman you'd want to date, what food will taste good, or what style of clothes you think will fit you best. This is something you'll have to decide for yourself, by trial and error.
Click to expand...

Thanks for that, guess I just needed a little motivation to get it done :deadhorse:, on a side not the RGB LED strips have four points to solder, I asked a guy at the shop, on how I would be able to mount this on four different places in the TB, he said four wires running from each strip, but when I asked him if I'd have to use 'different' wires he was confused. So I just walked out saying I will check back later.

Anyways it should be alright if I just used one wire, instead of different colored ones?

I hope that makes enough sense :2thumbsup:

$ Khalid ! 9130 said:
Anyways it should be alright if I just used one wire, instead of different colored ones?
Click to expand...

It's general best practice to use different color wires for the connections between components. Imagine how close to impossible it would be if you opened the hood, or went to your fuse block and all the wires were the same color. :confused:

Of course there's nothing stopping you from doing that, and it's only 4 wires, but if something doesn't work right, or you blow fuses every time you turn them on, it will be a huge pain to troubleshoot. You'd end up having to trace your wires every single time, to find out which one is connected to where.

I know your mod bug is still growing, and I went through this phase myself when first starting out. You'll quickly learn, it's best not to be cheap and skimp on your mods. Do them right the first time, and it will save you headaches and money in the long run. :twocents:

  • Like
Reactions: Redbeard, $ Khalid ! 9130 and xavierny25
I've used the same color wires on stuff before, and marked the ends so I knew which was which (red wires with black rings on the ends, for example). But, that only works to identify the wires at the ends. If you have something wrong in the middle, well... good luck lol.

My extra wiring on my headlights was all done with green and red wires - the only colors I had of any usable length - though the controlling relays were done with many colors to keep things straight. Still was an inconsistent mess and coming back to it a year later left me scratching my head what went where. Next project I have that involves running a bunch of wires someplace will have me buying one of those multi packs of spooled wire from Amazon that has 10 different colors!

  • Like
Reactions: Redbeard, Blckshdw and $ Khalid ! 9130
Blckshdw said:
It's general best practice to use different color wires for the connections between components. Imagine how close to impossible it would be if you opened the hood, or went to your fuse block and all the wires were the same color. :confused:

Of course there's nothing stopping you from doing that, and it's only 4 wires, but if something doesn't work right, or you blow fuses every time you turn them on, it will be a huge pain to troubleshoot. You'd end up having to trace your wires every single time, to find out which one is connected to where.

I know your mod bug is still growing, and I went through this phase myself when first starting out. You'll quickly learn, it's best not to be cheap and skimp on your mods. Do them right the first time, and it will save you headaches and money in the long run. :twocents:
Click to expand...

Yep all valid points I've been taught already not to go for the cheapest way and then expect it to be great. another final question I have is if I plan on wiring it to the interior lights circuit, how would four wires meet up with only two

Sparky said:
Next project I have that involves running a bunch of wires someplace will have me buying one of those multi packs of spooled wire from Amazon that has 10 different colors!
Click to expand...

For my power folding mirror mod, I used orange and blue, for the same reason. Royal pain when I had to troubleshoot one of the circuits only going half speed. :banghead: so I ordered that big wire spool pack too!

$ Khalid ! 9130 said:
another final question I have is if I plan on wiring it to the interior lights circuit, how would four wires meet up with only tw
Click to expand...

Interior lights as in dome lights, or modules back lit when the parking lights come on?

Edit: I guess it doesn't matter. You can join the positive leads at the same connection point. Ditto with the grounds.

  • Like
Reactions: Redbeard and $ Khalid ! 9130
Blckshdw said:
For my power folding mirror mod, I used orange and blue, for the same reason. Royal pain when I had to troubleshoot one of the circuits only going half speed. :banghead: so I ordered that big wire spool pack too!



Interior lights as in dome lights, or modules back lit when the parking lights come on?

Edit: I guess it doesn't matter. You can join the positive leads at the same connection point. Ditto with the grounds.
Click to expand...

Nothing better than trial and error I guess :2thumbsup:

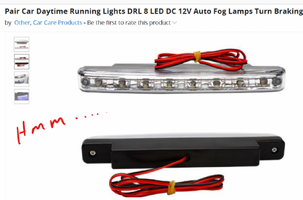

On topic though, looking at these for DRLs at the moment

Sketch (22).png

Capote said:
Your better off putting another set of fogs there IMO
Click to expand...

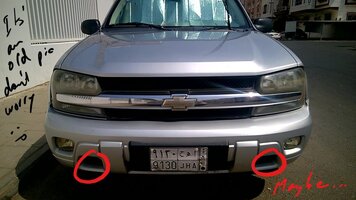

That's actually quite interesting, but there are the tow hooks there......

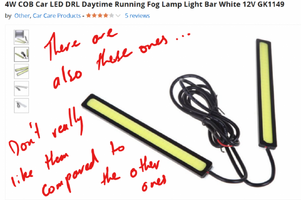

Also have these available online as well

Sketch (26).png

Not a fan of these really....

In other words I was also researching on ways to actually wire them up and I saw this method of tapping into the fuse box

Sketch (27).png

$ Khalid ! 9130 said:
That's actually quite interesting, but there are the tow hooks there......

Also have these available online as well

View attachment 80864

Not a fan of these really....

In other words I was also researching on ways to actually wire them up and I saw this method of tapping into the fuse box

View attachment 80865
Click to expand...
Those kind of DRL look ugly when they're not lit up.
Don't wire them up like that, use an "Add-a-Circuit"/"Add-a-Fuse"

Last edited:
  • Like
Reactions: Redbeard, Mounce, Blckshdw and 1 other person
Capote said:
Those kind of DRL look ugly when they're not lit up.
Don't wire them up like that, use an "Add-a-Circuit"
Click to expand...

Yep, have a TB in the neighborhood who has them on the bumper, light output is nice, but looks terrible during the day.

If I was to wire them I would go the add a circuit route, I was actually surprised when I saw the method to tap a fuse with the wire, I was like is that even safe. I guess my best bet at this time would be to go to a local store and look at the options and prices etc. and buy one, cause, I know that if it didn't work as expected I can just go and return it without any hassle

Problem with a lot of the cheap add-on DRL units is... they're cheap, dim, overly blue, or a combination of that.

Good ones seem to cost an arm and a leg.

I've been searching for something I can use on the Silverado the way I want, but, the only one that actually fits right is like $300 :yikes:

  • Like
Reactions: $ Khalid ! 9130, Capote, Redbeard and 1 other person
IMO it's better to have a retrofit done with some sort of DRL setup within the headlight housing, for a more "factory" look. Otherwise it looks too awkward, atleast on our trucks.

  • Like
Reactions: $ Khalid ! 9130, Tiggerr and Sparky
l008com said:
My DRL plan (if i ever do my projector retrofit) is to put some 4500K 3157's in the high beam bays and wire them up to ignition power. For DRLs, they don't have to be super bright, so that should be cheap and very effective.
Click to expand...
That'd be interesting to see

Capote said:
IMO it's better to have a retrofit done with some sort of DRL setup within the headlight housing, for a more "factory" look. Otherwise it looks too awkward, atleast on our trucks.
Click to expand...

I'd planned to get some cheap ok looking del in place until, I get me some new headlights, then go for a retrofit. Its been on my mod list, just really really at the bottom of it :coffee:

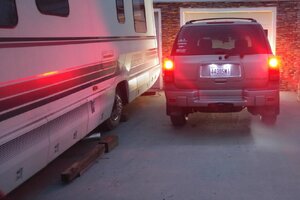

I just had both of my brake light bulbs fail (more than 75% of SMD's dead/flickering) within a 3 day period.
When the first failed, I swapped my remaining good one into the opposite socket (to make sure it was just a bad bulb) and now 3 days later that bulb is dead too.
I popped regular incandescent bulbs in so I had taillights on my way to work this morning, and the questionable socket does not have brake functionality (or at least some dude from Louisiana who was smoking in the parking lot where I work said it didn't).

So is this just a coincidence both bulbs failed, or is there such thing as a bad socket/board?
I know our boards were recalled (and mine got replaced under the recall), but do they ever fail?

(I think I jinxed myself by posting in a different thread that I have had no trouble at all with my taillight LEDs in the 2 years I have had them).

gpking said:
I just had both of my brake light bulbs fail (more than 75% of SMD's dead/flickering) within a 3 day period.
When the first failed, I swapped my remaining good one into the opposite socket (to make sure it was just a bad bulb) and now 3 days later that bulb is dead too.
I popped regular incandescent bulbs in so I had taillights on my way to work this morning, and the questionable socket does not have brake functionality (or at least some dude from Louisiana who was smoking in the parking lot where I work said it didn't).

So is this just a coincidence both bulbs failed, or is there such thing as a bad socket/board?
I know our boards were recalled (and mine got replaced under the recall), but do they ever fail?

(I think I jinxed myself by posting in a different thread that I have had no trouble at all with my taillight LEDs in the 2 years I have had them).
Click to expand...
The boards can go bad, I replaced my driver's side board a few years ago. Even happened on my '97 Yukon as well. Just one of those things.

  • Like
Reactions: Blckshdw
gpking said:
So is this just a coincidence both bulbs failed, or is there such thing as a bad socket/board?
I know our boards were recalled (and mine got replaced under the recall), but do they ever fail?
Click to expand...

Check the sockets and see if there's any corrosion on the contacts. If there is, that will cause added resistance in the circuit, which means more heat than usual. Heat kills LEDs, and will eventually melt the plastic of the socket if it goes unchecked.

If you wanna dig deeper, you could split the 2 plastic shells that contains the metal traces and check to see if there are any breaks or problems in there.

It must have just been a dirty pin. I moved bulbs around and they're working fine. That eliminates the socket at the culprit. I think both LED's just had life expectancies suspiciously close to the mean.

They lasted 2 yrs/30,000 miles/750 hours (if my math is correct). Not good considering LED should well outlast incandescent.

Any recommendations on good time-tested replacements? CK is preferable, but I know how to modify non-CK bulbs if need be. I just don't want to be replacing brake lights every 2 years.
The bulbs they are replacing were stupid bright, so I'm looking for similar output without breaking the bank.

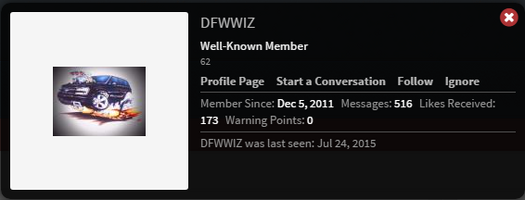

Get in contact with Kevin...@DFWWIZ

Matt said:
Get in contact with Kevin...@DFWWIZ
Click to expand...
Blckshdw said:
I think it's safe to say he retired from us almost 2 years ago. :sadcry:
Click to expand...
Could be gone... But that reminds me, I last contacted him 3/23/15 through email.
(Back then) he said he does group buys of Phillips brand LEDs (not sold in the US at the time?) on the 1st of every month. He claimed to have sold nearly 100 sets of LED headlights at the point when I contacted him and that users were happy with them.
So that at least points me toward a reputable brand.

I just did a quick search of Phillips' 3157 offerings, and the first result is natively CK and non-CK compatible.
https://www.amazon.com/dp/B00P2D41LE/?tag=gmtnation-20
What really caught my eye is the 12 year warranty.
Phillips said:
Any Philips Vision LED light that fails as a result of a product defect in non-commercial application during the 12-year period after purchase is covered by the PHILIPS limited warranty. Register your product by mailing in this form within 30 days of purchase to benefit from our 12-year limited warranty. Jurisdictions in which warranty benefits cannot be conditioned on registration will automatically receive the 12-year limited warranty. Your statutory rights to non-defective goods remain unaffected.
Click to expand...
HOWEVER, reviews aren't that great.

For $5 more, I can get a set of JDM ASTAR 3157 non-CK with the best reviews of any bulb in the $20 price range.
https://www.amazon.com/dp/B00PHUMFEW/?tag=gmtnation-20
Might go with these instead because they look like the bulbs I am replacing.

gpking said:
Could be gone... But that reminds me, I last contacted him 3/23/15 through email.
(Back then) he said he does group buys of Phillips brand LEDs (not sold in the US at the time?) on the 1st of every month. He claimed to have sold nearly 100 sets of LED headlights at the point when I contacted him and that users were happy with them.
So that at least points me toward a reputable brand.

I just did a quick search of Phillips' 3157 offerings, and the first result is natively CK and non-CK compatible.
https://www.amazon.com/dp/B00P2D41LE/?tag=gmtnation-20
What really caught my eye is the 12 year warranty.

HOWEVER, reviews aren't that great.

For $5 more, I can get a set of JDM ASTAR 3157 non-CK with the best reviews of any bulb in the $20 price range.
https://www.amazon.com/dp/B00PHUMFEW/?tag=gmtnation-20
Might go with these instead because they look like the bulbs I am replacing.
Click to expand...

The bulbs he was getting was Chinese made claiming to use Phillips chips. Not Philips branded.

However those jdmastar bulbs you listed, those use my favorite chips to date and are stupid bright. I use the style like this in my mustang. 6 red in the rear and two switchbacks for the front, if you miss my braking/signaling it's your own fault lol.

https://www.amazon.com/dp/B01JU9LPUU/?tag=gmtnation-20


However those Phillips bulbs you listed I am running in the brake lights or turn sigs (can't remember) and they're good and reliable but not much brighter than standard incan. really.

  • Like
Reactions: gpking
You can get a hold of him through FB. Kevin Hanson. I have had troubles with my front indicators not blinking when the lights are off. Got hold of Kevin and his bulbs simply worked. I didn't do anything but plug them in, so for me, he's the go to guy.

  • Like
Reactions: Matt
So are you trying to add a led strip on top of the lens? Sorry just trying to figure out what you want to do

They won't last long stuck to the outside, they're not likely weatherproof right?

On my old TB I used black flexible strips instead of white.

  • Like
Reactions: Capote
You're better off hiding them on top of the headlights. If you leave them there the sun will fade the coating over the LED's into an ugly yellow haze. There's not gonna be any decent way to really cover up the white portion of the strip. That's why I always get ones with a black finish. If you peel off the coating that is keeping them weatherproof how're you properly going to seal them back up?

07TrailyLS said:
So are you trying to add a led strip on top of the lens? Sorry just trying to figure out what you want to do
Click to expand...

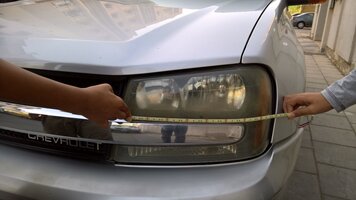

NO!!! I was just checking how long I should cut the Led strips when I do the retrofit. With the projectors I want that strip going across the same position inside the headlight assembly, as DRLs

Sparky said:
They won't last long stuck to the outside, they're not likely weatherproof right?

On my old TB I used black flexible strips instead of white.
Click to expand...

They are weatherproof, but if I remove the covering/coating then they wont be waterproof. I will try to find black strips, but again might be really hard to get over here

Capote said:
You're better off hiding them on top of the headlights. If you leave them there the sun will fade the coating over the LED's into an ugly yellow haze. There's not gonna be any decent way to really cover up the white portion of the strip. That's why I always get ones with a black finish. If you peel off the coating that is keeping them weatherproof how're you properly going to seal them back up?
Click to expand...

I was thinking since they would be inside the headlight assembly, after the retrofit, shouldn't really matter if they are weatherproof or not right if the headlight itself is sealed right

$ Khalid ! 9130 said:
NO!!! I was just checking how long I should cut the Led strips when I do the retrofit. With the projectors I want that strip going across the same position inside the headlight assembly, as DRLs



They are weatherproof, but if I remove the covering/coating then they wont be waterproof. I will try to find black strips, but again might be really hard to get over here



I was thinking since they would be inside the headlight assembly, after the retrofit, shouldn't really matter if they are weatherproof or not right if the headlight itself is sealed right
Click to expand...
Ohh well in that sense it'd be fine, you didn't clarify that these would be inside the headlight assembly.

I had the same issue when I built switchbacks for my side mirrors. The PCBs were white and I wanted them black, behind the tinted lenses.


So I used electrical tape, lightly over the top, and used a razor blade to cut out the squared shape of the 5050 led. Then pressed the tape down, and here's how they turned out.


If you're up close you can see the LEDs when they're off, and the wires. But once you're a few feet away, you can't tell at all.

  • Like
Reactions: Redbeard, Capote and $ Khalid ! 9130
Blckshdw said:
I had the same issue when I built switchbacks for my side mirrors. The PCBs were white and I wanted them black, behind the tinted lenses.

20160127_174827-jpg.81531


So I used electrical tape, lightly over the top, and used a razor blade to cut out the squared shape of the 5050 led. Then pressed the tape down, and here's how they turned out.

20160128_090914-jpg.81532


If you're up close you can see the LEDs when they're off, and the wires. But once you're a few feet away, you can't tell at all.
Click to expand...

Yeah I knew someone would've thought about this!!! When I do mine I'll do them this way for sure. Thank you master :tiphat:

  • Like
Reactions: Redbeard and Capote
Thanks to @Blckshdw for giving me the led strip idea that got me thinking of doing something to the brake lights. My idea is to use a breadboard, cut it to the shape of the rear tailight circles, put strips of leds from the top to bottom of the board and then wiring them up to the brake light sockets. Comments are welcome :2thumbsup:

  • Like
Reactions: Redbeard
