Very nice, that's one of the things I love about the I6 TB's is the open space afforded by the I6, the V8s cant say that. LOL
4.2 Envoy Turbo Build
- Thread starter ConeKilrAutoX
- Start date
- Dec 8, 2011
- 1,179
gmcman
Member
- Dec 12, 2011
- 4,660
Looks awesome!
I have a question on the space between the strut bolts and the turbo, and the reason I ask is just to cover your A$$ as well. Hard to say by the pic but is there enough clearance for the torquing of the motor? I know you thought everything through but would hate to see that there isn't enough room after the test drive.
I have a question on the space between the strut bolts and the turbo, and the reason I ask is just to cover your A$$ as well. Hard to say by the pic but is there enough clearance for the torquing of the motor? I know you thought everything through but would hate to see that there isn't enough room after the test drive.
- Dec 8, 2011
- 1,179
gmcman said:
hey thanks! and thanks for bringing that up. luckily I have a good 3+ inches of room there...I know the pic is not too clear.
That would be a disaster haha
I had used a support attached to one of the two 18mm bolt there but I might reconsider. I need to find a better mount to the engine though so it moves with the engine. The one I have is just temporary while I finish welding it all up.
ScarabEpic22
Member
- Nov 20, 2011
- 728
TollKeeper said:Nope we cant say that, we get to use the rear mount Camaro turbo kits.
Ugh Id never do a rear mount anything, just my .02. Especially since the V8s in our trucks can just as easily get a Magnacharger, Procharger, etc and make real power. Unfortunately, turbo kits are still fab-your-own for the time being.
But a 5.3 with a cam and a Magnacharger at 6-8psi will do some damage, at least ~400-450+ at the rear wheels.
- Dec 8, 2011
- 1,179
yeah. I saw one at thompson dragatrip before I knew a lot about cars and before I was on the forum. There was a v8 envoy supercharged there that was just crushing mustangs.
I have no qualms with doing a rear mount as long as the vehicle has plenty of room for everything underneath it. A trailblazer at first glance looks like a good one for it, that resonator area would make a great "tucked up in" turbo area.... but in any case with a rear mount, proper piping sizes, a good proper sized intercooler, and a dedicated oiling system are a must to make them worth the time. If you size everything correctly and get some good tuning you can make them pretty efficient really.
As far as I6 vs. V8 360 platform's go any turbo would be build/ fab your own, so if you got the V8 go with a super/ procharger and keep the hassle to a minimum.
Us I6 guys will settle for homemade turbo setups.
As far as I6 vs. V8 360 platform's go any turbo would be build/ fab your own, so if you got the V8 go with a super/ procharger and keep the hassle to a minimum.
Us I6 guys will settle for homemade turbo setups.
- Dec 8, 2011
- 1,179

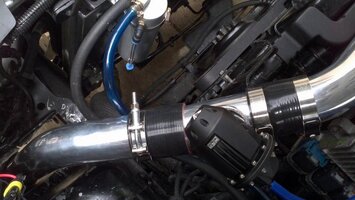

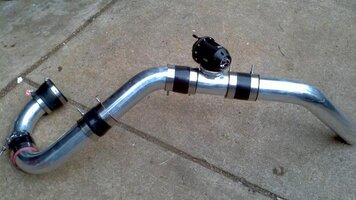

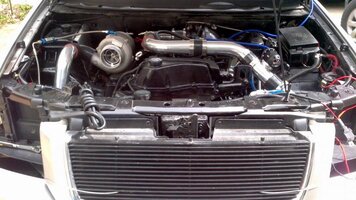

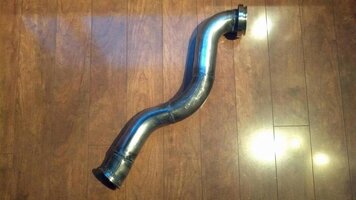

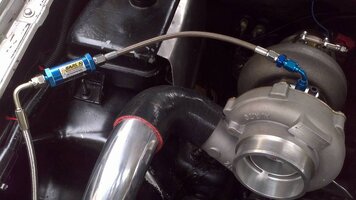

pics from todays work. intercooler piping done downpipe done, oil feed line mocked up and vacuum splitter mocked up also fabbed a rough heat shield around coolant res.
View attachment 27284
View attachment 27285
View attachment 27286
View attachment 27287
View attachment 27288
View attachment 27289
View attachment 27284
View attachment 27285
View attachment 27286
View attachment 27287
View attachment 27288
View attachment 27289
Attachments
- Dec 8, 2011
- 1,179
gmcman said:I want to go for a ride.
That's looking really sweet.
haha thanks so do I !!! should be all done in May. maybe if your ever up in Pa or there is suddenly a Pa get together in south western PA it could happen
Im liking your voy plans man. that is going to look awesome! keep the project pictures coming!Ryda55555 said:Wow........ Speechless
BEWARE though...I started off just saying I was going to put on a cold air intake
now look how bad the mod-bug is.
Ryda55555
Member
- Apr 11, 2013
- 1,111
Im liking your voy plans man. that is going to look awesome! keep the project pictures coming!
BEWARE though...I started off just saying I was going to put on a cold air intake now look how bad the mod-bug is.[/QUOTE]
Hahaha thanks
but that front end of yours is gorgeous lol definitely one of a kind
Oh i know, im starting to spend money i dont have hahaha and skipping college to bring it in to get it looking pretty for the summer....
NOT GOOD
BEWARE though...I started off just saying I was going to put on a cold air intake
now look how bad the mod-bug is.[/QUOTE]Hahaha thanks
but that front end of yours is gorgeous lol definitely one of a kindOh i know, im starting to spend money i dont have hahaha and skipping college to bring it in to get it looking pretty for the summer....
NOT GOOD
- Dec 8, 2011
- 1,179
haha nah its all been on a budget (except the turbo build) really the LEDs are cheap the seats arent too bad, the exhaust was like $600 did all the welding my self... hids were under 200 for everything including turn signals...TIME is the major factor. I literally have over 200+ hours spent working on this car.
but I am finishing college up so I am paying that too. It was mac n cheese and ramen noodle soup for the last few years most of the time! but was definitely worth it. I can't wait to see your voy mods man
really the LEDs are cheap the seats arent too bad, the exhaust was like $600 did all the welding my self... hids were under 200 for everything including turn signals...TIME is the major factor. I literally have over 200+ hours spent working on this car. but I am finishing college up so I am paying that too. It was mac n cheese and ramen noodle soup for the last few years most of the time! but was definitely worth it. I can't wait to see your voy mods man
Darkrider_LS
Member
- Jan 25, 2013
- 9,332
- Dec 8, 2011
- 1,179
- Dec 8, 2011
- 1,179
well after test driving my buddies car (240sx) with brand new Dunlop Direzza's on it I AM NOT GETTING THEM. Weather was nice today and I have driven in a lot of bad weather and autocross events 30+ drift events, and those dunlops were the WORST tire I have ever been on ! (including a friends 98 turbo camaro with slicks in the rain)
I am going to order Cooper Xst-a v-speed rated summer tires tomorrow instead.
View attachment 27407
I am going to order Cooper Xst-a v-speed rated summer tires tomorrow instead.
View attachment 27407
Attachments
- Dec 8, 2011
- 1,179
STLtrailbSS
Member
- Dec 4, 2011
- 1,617
- Dec 8, 2011
- 1,179
- Dec 8, 2011
- 1,179
great thanks! ill be running 265/35/22 but I assume they are similar (taking into consideration the smaller sidewalls I will have)
Opeth
Member
- Mar 25, 2012
- 177
From experience in my past adventures in life.....
What PSI are you planning on running? Only reason I ask is with that many rubber couplers and t bolt clamps your opening up that setup for multiple failure points. I would try to have a few of the connections welded together and the few you do need to have, bead roll the pipe or have v band clamps with gaskets ends installed onto them. A modest 7-8 psi would probably be ok, but anything higher than that we kept having connections blow off without doing one of the above.
What PSI are you planning on running? Only reason I ask is with that many rubber couplers and t bolt clamps your opening up that setup for multiple failure points. I would try to have a few of the connections welded together and the few you do need to have, bead roll the pipe or have v band clamps with gaskets ends installed onto them. A modest 7-8 psi would probably be ok, but anything higher than that we kept having connections blow off without doing one of the above.
- Dec 8, 2011
- 1,179
hey thanks for the concerns. I too feel the same way as you. I am running 3-8 psi 8 being MAX...that is the only reason I decided just to use the silicone+t bolts. haha on a different build, my friend was running 28 psi and blew the silicone hoses off in the middle of a very important money run. Then I convinced him to just have the aluminum welded and all was well.
- Dec 8, 2011
- 1,179

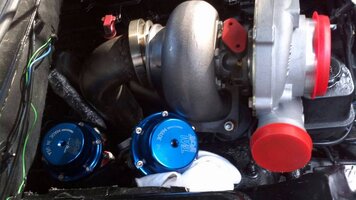

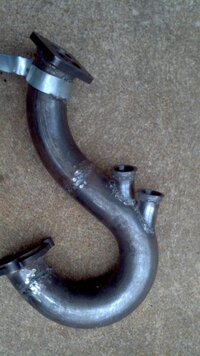

Welded up my wastegate piping today and positioned the wastegates where I want them. Next I need to clean up the mig slag everywhere and weld the out pipes from the wastegates into the down pipe.
View attachment 27497
View attachment 27493
View attachment 27494
View attachment 27497
View attachment 27493
View attachment 27494
Attachments
- Dec 8, 2011
- 1,179
thanks! getting close
- Dec 8, 2011
- 1,179
good question I dont know yet. ceramic coat possibly? I am unsure about using heat wrap. The last time I heat wrapped a turbo application the pipes rotted much quicker... what do you suggest?
they are too big to use vht header coat because I cant fit them in my oven haha
they are too big to use vht header coat because I cant fit them in my oven haha
limequat
Member
- Dec 8, 2011
- 520
ConeKilrAutoX said:
Yeah wrap will accelerate corrosion. You want the heat OUT of the downpipe anyway, not in.
It'd probably be about $100 to ceramic coat the downpipe if you can find a local place.
Believe it or not, I've actually had good luck with high-temp ceramic aerosol paint. I painted my bare mild steel downpipe and cat-back on my Supra about 10 years ago. Got a little bit of surface rust on the welds, but not bad. Especially for a $5 spray bomb!
- Dec 8, 2011
- 1,179
- Dec 8, 2011
- 1,179
Attachments
- Dec 8, 2011
- 1,179
Well still waiting for parts to come in so I don't have much to do as of right now ....

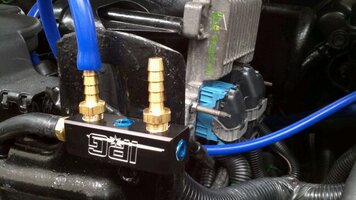

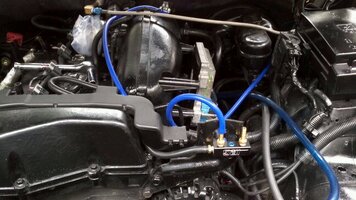

So today I hooked up my vacuum block to the intake manifold port and then I ran one of the ports to my boost gauge using the 4mm silicone hosing.
The other port is for the HKS blow off valve once it is all put together.
(Hose still needs to be put on all the way but I am waiting for some clamps before I do that )
View attachment 27818
So today I hooked up my vacuum block to the intake manifold port and then I ran one of the ports to my boost gauge using the 4mm silicone hosing.
The other port is for the HKS blow off valve once it is all put together.
(Hose still needs to be put on all the way but I am waiting for some clamps before I do that )
View attachment 27818
Attachments
STLtrailbSS
Member
- Dec 4, 2011
- 1,617
- Dec 8, 2011
- 1,179
STLtrailbSS said:
dmanns67 said:
haha thanks

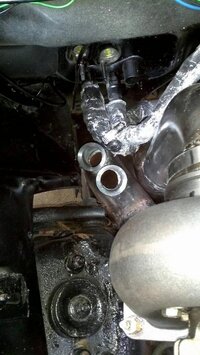

Today I deleted the heater system. I bought a 1ft section of 5/8 hose and attached the outlet/inlet hoses together bypassing the heater core. Now I have PLENTY of room to comfortably and safely put the wastegates in this week when the flanges get here I cant wait.
I also chopped the original turbo flange also and had a new one machined and now I just need to weld the new one up tmrw and this works out since I will need an extra turbo flange to pipe my test exhaust from the flange out the side of the open hood when I fire it up without the turbo and make sure everything is working correctly.
What a crazy project this thing has become. My "budget" at the beginning was $1000
I HAD NO IDEA WHAT I WAS GETTING INTO ...(pics later tonight or tmrw)
