How to replace front lower strut bushings

gmcman

Well-Known Member
I meant to submit this a couple months ago, hopefully this article is complete enough for anyone to tackle this job, I guess we can edit in the future if needed.

I started this job as I was changing my front struts/springs and steering rack. I figured I would get everything into place before the alignment.

I was able to complete this job with a few simple tools, I did source a ball joint tool which is avail for rent at a parts store, I lucked out and my neighbor had one. I'm sure there are other more "dedicated" tools that could work more effectively but this turned out easier than planned. I'm confident that by viewing this thread, any tool changes could be substituted easily by the user as they see fit.

I replaced both of the lower strut bushings with the MOOG K200270.

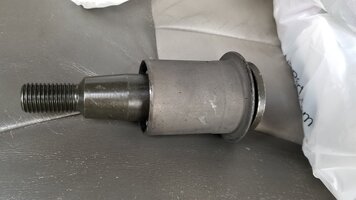

MOOG K200270 Lower Strut Bushing


These were in dire need of replacement, I could easily move the RH stud inside the bushing with a screwdriver.

You will likely need to raise both front wheels and loosen both strut assemblies by their two upper mounting bolts before you remove the lower strut mounting yoke from the lower control arm, thus allowing the LH & RH suspension to fully hang down. This should keep you from needing to loosen or remove a sway bar link.

Once the front end was secured on the frame with jack stands allowing the entire suspension to hang, I loosened the top two strut mounting bolts on both the LH & RH struts to ensure there was no tension on the lower strut yoke at the bushing.

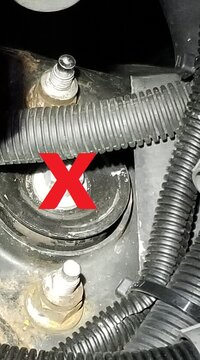

DO NOT REMOVE THE CENTER NUT OF THE STRUT ASSEMBLY




You may need a floor jack to lift the lower control arm to re-position the lower strut yoke onto the new bushings once installed. I used this as a secondary safety to the tire and wheel under the frame also.

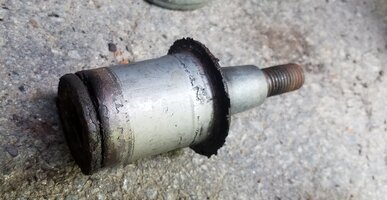

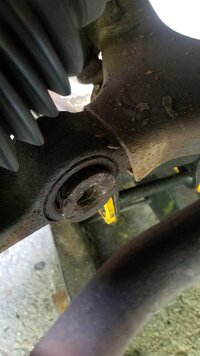

The worn original bushings

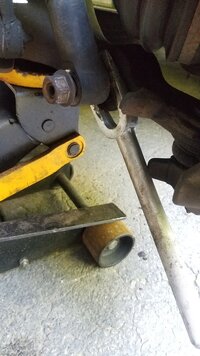

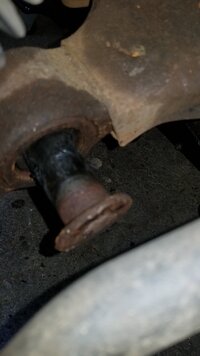

The lower strut yoke may come off with a few blows of a 3lb sledge, this side needed more persuasion.


Once the strut yoke is free from the bushing, remove the two upper mounting bolts and set the strut assembly aside.


I borrowed a ball joint tool and used these 2 pieces in conjunction to the press:


For removing the strut yoke mounting stud from the old bushing, the press used with the ball joint kit wasn't large enough to fit around the stud and the receiving collar on the other side. However it was fine for pressing the remaining portion of the bushing from the lower control arm.

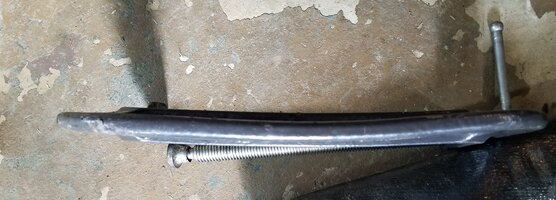

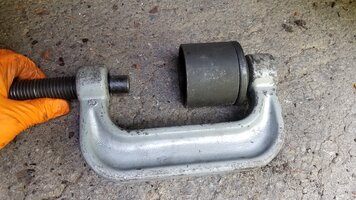

I had to use my 8" C-Clamp which was originally delegated for compressing brake calipers.

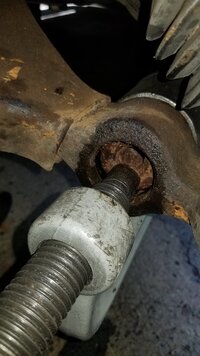

The idea here is to force the mounting stud or post, back through the bushing housing by breaking it away from the rubber, thus destroying the bushing.

Once you begin to press the mounting stud, there is no turning back, the bushing will need to be replaced before you can operate the vehicle again so have the new one handy.


I used the collar that was just larger than the bushing, I believe the collar was 3". The largest part of the bushing measures just over 56MM which is roughly 2 1/4".

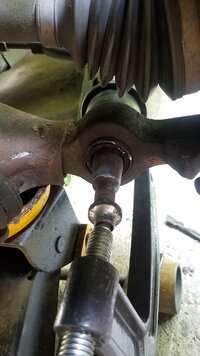

The RH side broke free without much force, the LH side put up more of a fight and was taking a toll on my C-Clamp. Just continue until you feel the back side of the mounting stud bottom out into the end of the clamp.

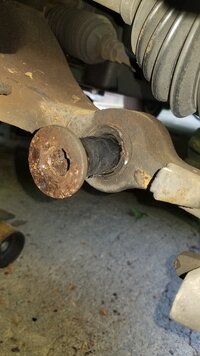

At this point just push it through

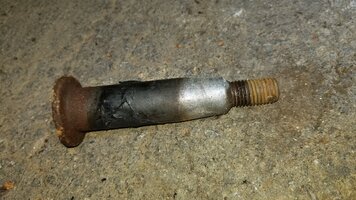

I could not find anything to match the size of the bore so it turns out that the large head of the strut yoke mounting stud, was the exact size of the bore.

If you have a tool this size then you could press the bushing out without breaking the rubber surround, but the stud works perfectly.

b.jpg]

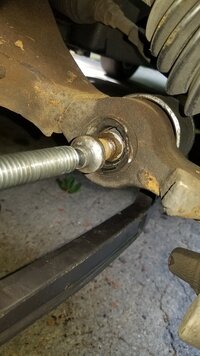

Placing the mounting stud back through the bushing in the opposite direction, you can now use the ball joint press to remove the remaining portion of the bushing.




Set the tool up in this manner







This is easier than a C-Clamp since you can use a ratchet or breaker bar on the press. Also doubtful a cheap C-Clamp would hold up to these forces.

At this point you may or may not need any heat. I didn't need any heat on the RH side, but needed some heat on the LH side. Also, some PB Blaster or equivalent is a good idea.

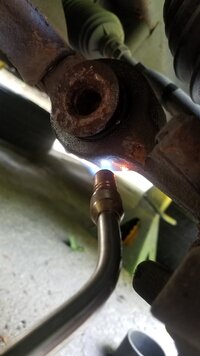

Once I started to press the bushing out, I had to stop and apply some heat.

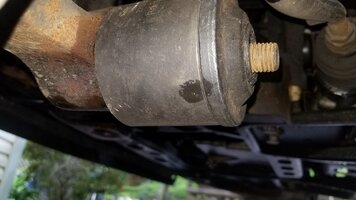

Continue to press the bushing until you feel it break free. You will see the head of the stud is a perfect fit inside the bore, I felt no binding during the process.

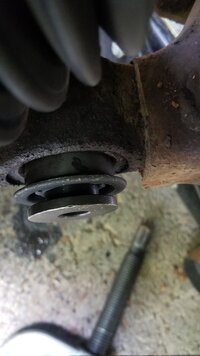

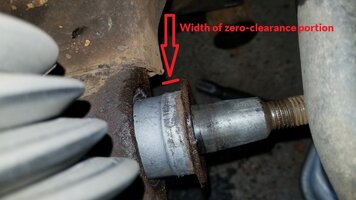

The portion of the bushing that has a press fit is not that wide






Continued.......

Last edited:
OP
OP
gmcman

gmcman

Well-Known Member
....Continued

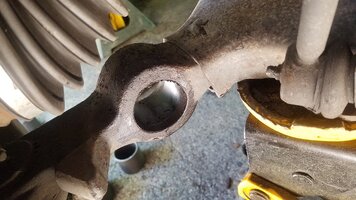

To install the new bushing, I would clean up the bore and remove any debris. This pic of the bore is from the RH side, but the process is the same.



Insert the bushing into the lower control arm with the threads facing forward.

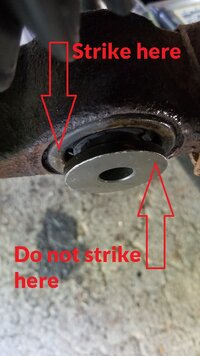

Only strike the outer collar, do not strike the center.





I used the old mounting stud to seat the new bushing. Lightly hit the old stud with a hammer moving around the diameter as you go, a few hits at a time.

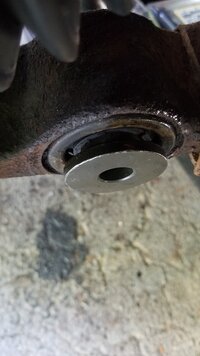

Fully seated




When finished with the first side, leave the strut assembly off of the vehicle until you finish the other side, or just secure the top of the strut assembly to one side leaving the yoke hanging free. This way you won't have to fight the tension of the sway bar.

Once finished with both the LH & RH lower strut bushings, take the strut assembly and secure the top two mounting bolts but do not tighten at this time. This will allow movement to seat the yoke onto the bushing.

Once the yoke is placed on the new bushing, secure the yoke using the 24MM mounting nut and just snug the bolt. The center hex of the bushing is 8MM, I used a 8MM hex bit with a 24MM wrench to get the yoke snugged down before fully torquing, only to lessen the chance of the new stud from twisting inside the bushing. You may not need to do this.

Tighten the two upper strut mounting bolts to 33 foot-pounds on each strut assembly.

Tighten the yoke mounting nut to 82 foot-pounds on each assembly.

The C-Clamp did turn into a different tool after the LH bushing. I would advise to use a good, high quality 8" C-Clamp or larger.


Overall the process was easier than I expected, I thought there was more of the bushing that was in contact with the lower control arm. Not a difficult job and I would recommend this in addition to replacing the struts, especially if they have some years and miles on them.

Last edited:

Reprise

Lifetime VIP Supporter
Excellent write-up. From recent experience in a different area, lubing the threads on the forcing screw (c-clamp, in your case) with some grease does help with lessening the force required to turn the screw.

If you did that, my apologies, but I didn't see a mention of it, and I hate when I destroy a tool, myself (which I've done, to be sure)

OP
OP
gmcman

gmcman

Well-Known Member
@Reprise Thanks!

The threads had a tiny amount of residual spray from an earlier job, months ago, but nothing to make a difference. You are correct as some lube at the ball socket and threads would have very likely made the job easier and possibly save the clamp.

Last edited:

Mooseman

Moderator
Noice write up! Added to FAQ: Suspension & Steering

For the longest time, we kept suggesting to replace the whole control arm as this job looked tough. Still applies if you also have to replace the ball joints and A-arm bushings.

Never would have thought of using the old stud. That's genius right there!

OP
OP
gmcman

gmcman

Well-Known Member
Thanks @Mooseman .

I put these off for a few years as well, didn't want to change the LCA after I already replaced the bracket and a new alignment not too long ago.

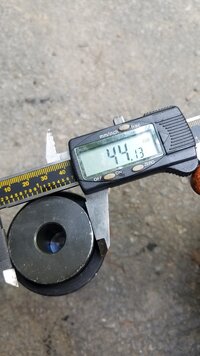

Using a dial caliper, I checked the head of the stud first, then the OD of the bushing on the opposite side. I don't remember the measurement but it was very close so I gave it a shot.
