Post Your Audio System Pics!

MrDJ

Original poster
Member
Dec 4, 2011
180
Waxahachie, TX
I always found this thread very helpful so I decided to start one here. Hopefully others will soon join in.

Can this be made a Sticky?







Regulator

Member
Nov 20, 2011
2,496
I really like your set up with the 6x9's mounted on the side. My family and I spend a lot of time at the drive-inn during the summer and that would come in very handy. I think I may have to borrow your idea. :thumbsup:


MrDJ

Original poster
Member
Dec 4, 2011
180
Waxahachie, TX
Regulator said:
I really like your set up with the 6x9's mounted on the side. My family and I spend a lot of time at the drive-inn during the summer and that would come in very handy. I think I may have to borrow your idea. :thumbsup:

Go right ahead!


STLtrailbSS

Member
Dec 4, 2011
1,617








I havnt snapped pics of audio in a while but here's a breakdown

Boston components powered by 4ch jl
2 alpine type rs powered by 500v2 sold the 1000v2 and w7s
Then there are some tweeters up in the pillars and the kick panel coaxials.
Kenwood ddx712 nav/xm


MrDJ

Original poster
Member
Dec 4, 2011
180
Waxahachie, TX
Awesome! Love the component speakers in the kick panel!


havie22

Member
Dec 4, 2011
158
STLtrailbSS said:


I havnt snapped pics of audio in a while but here's a breakdown

Boston components powered by 4ch jl
2 alpine type rs powered by 500v2 sold the 1000v2 and w7s
Then there are some tweeters up in the pillars and the kick panel coaxials.
Kenwood ddx712 nav/xm

looks nice! where did you get those pillar mount tweeters? those look really good too?


FlyingFischer

Member
Dec 4, 2011
254
Spokane, WA
Pic of new sub enclosure.


Attachments

  • uploadfromtaptalk1324853924736.jpg
    23.3 KB · Views: 436

STLtrailbSS

Member
Dec 4, 2011
1,617
havie22 said:
looks nice! where did you get those pillar mount tweeters? those look really good too?
That is a custom box made to sit inside the pillar.


tripplesix

Member
Jan 26, 2012
42
No big dealio, but it works GREAT for me!! :2thumbsup:

Kenwood Excelon Receiver, usb in the back, CD inside (unfortunately not a MASK like my previous one; other than that, this one is better and up-to-date though):
View attachment 18195
View attachment 18196

Kenwood Excelon amp for both sets of speakers (attached to the back of the seat):
View attachment 18197

MTX Jack Hammer amp for sub (attached to the back of the sub):
View attachment 18198

MTX 750 W (i think) sub (i only wanted 1 powerful sub so that I would have trunk space:
View attachment 18199

trunk space with sub:
View attachment 18200

connected ipod sits inside armrest:
View attachment 18201

both sets of my speakers are component polks (mm 6501) and look like this:
View attachment 18202

That's how I ride.


Attachments

  • rcvr (in dark) 1.jpg
    rcvr (in dark) 1.jpg
    22 KB · Views: 28
  • rcvr (in light) 2.jpg
    rcvr (in light) 2.jpg
    79.6 KB · Views: 27
  • amp kenwood 1.jpg
    amp kenwood 1.jpg
    94 KB · Views: 31
  • amp mtx 1.jpg
    amp mtx 1.jpg
    96 KB · Views: 30
  • subwoofer 3.jpg
    subwoofer 3.jpg
    92 KB · Views: 28
  • subwoofer 1.jpg
    subwoofer 1.jpg
    73.2 KB · Views: 29
  • ipod 1.jpg
    ipod 1.jpg
    93.5 KB · Views: 27
  • spkrs - polk mm6501.jpg
    spkrs - polk mm6501.jpg
    5.4 KB · Views: 396

tokahao

Member
Dec 9, 2011
79
fr34kout said:
Funny enough I bought my Envoy to fit my sound system inside lol (Bought my sub Feb of 2010, wanted a Dodge Magnum for months but the trunk ended up being too small, then bought my Envoy 2 hrs after I checked out the Magnum in May of 2010 lol)

:thumbsup:


ConeKilrAutoX

Member
Dec 8, 2011
1,179

Attachments

  • 2 (2).jpg
    2 (2).jpg
    84.8 KB · Views: 34
  • 1 (2).jpg
    1 (2).jpg
    61.1 KB · Views: 55
  • Photo3642.jpg
    72.9 KB · Views: 36
  • 2011-07-12_21-25-48_40.jpg
    52.6 KB · Views: 51

MrDJ

Original poster
Member
Dec 4, 2011
180
Waxahachie, TX
ConeKilrAutoX said:

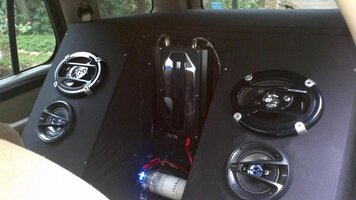

2 x 15" PYLE 1,500watt bluewave subs (3,000 watts of CLEAR bass no rattles! :thumbsup: )
2 x 6x9 300 watt 3 ways
2 x 5 1/4 sony xplod 3 ways
2 x Dual Audio 600watt amps
1.7 Farad Capacitor
50watt Sony (blue) Xplod Deck
4 x 3way Sony 6 1/2's all the way around


View attachment 3526

That looks awesome! I love the 6"x9"s and the 6.5"s facing that direction. How do the highs sound?


ConeKilrAutoX

Member
Dec 8, 2011
1,179
MrDJ said:
That looks awesome! I love the 6"x9"s and the 6.5"s facing that direction. How do the highs sound?

the highs / mids sound AMAZING. thats one thing a hate before with the speakers in the door i could barely hear guitar and vocals with bass. now its like the bands in the back !


i forgot i have a set of small tweeters in dash up front***


ConeKilrAutoX

Member
Dec 8, 2011
1,179
MrDJ said:
What are all the gauges you have there?

left side pillar (all still function)
vacuum pressure (used to have boost when it was turbo'd for about week before computer PCM went to hell haha it got all kinds of confused)
Wideband air fuel ratio (hooked up to AEM controller and standalone ecu when I had old PCM computer with turbo) upstream of Cat
oil temp (hooked up to greddy oil temp sender/sensor)

Glovebox
transmission temperature (hooked up to my Greddy Transmission Cooler)
narrow band airfuel ratio (down stream of Cat)
air pressure (for brake booster because I have had air leaks before so i wanted to keep an eye on it)


MrDJ

Original poster
Member
Dec 4, 2011
180
Waxahachie, TX
ConeKilrAutoX said:
left side pillar (all still function)
vacuum pressure (used to have boost when it was turbo'd for about week before computer PCM went to hell haha it got all kinds of confused)
Wideband air fuel ratio (hooked up to AEM controller and standalone ecu when I had old PCM computer with turbo) upstream of Cat
oil temp (hooked up to greddy oil temp sender/sensor)

Glovebox
transmission temperature (hooked up to my Greddy Transmission Cooler)
narrow band airfuel ratio (down stream of Cat)
air pressure (for brake booster because I have had air leaks before so i wanted to keep an eye on it)

Nice. Very effective


lknhomeaudio

Member
Dec 14, 2011
29
fr34kout said:
Funny enough I bought my Envoy to fit my sound system inside lol (Bought my sub Feb of 2010, wanted a Dodge Magnum for months but the trunk ended up being too small, then bought my Envoy 2 hrs after I checked out the Magnum in May of 2010 lol)

http://img.photobucket.com/albums/v187/Fr34kout/IMAG0047.jpg[IMG]

[IMG]http://img.photobucket.com/albums/v187/Fr34kout/IMGP0818.jpg

http://i828.photobucket.com/albums/zz204/titan46/DSCN1848.jpg

http://i828.photobucket.com/albums/zz204/titan46/DSCN1847.jpg

http://i828.photobucket.com/albums/zz204/titan46/DSCN1846.jpg


What subs are those?


fr34kout

Member
Jan 6, 2012
662
Left to right, 18" Ascendant Audio SMD Dual 2 (daily sub, about to be reconed to Dual 1), 18" Fi BTL (Dual 1, second generation. Friends sub, used it to burp once), 18" Fi BL Dual 1 (bought blown, need to recone)


YOUNG

Member
Dec 4, 2011
285
those SMD 18s are Monsters for sure. wish i could afford to run one. :hissyfit:

Clarion Double Din cx501 (i have it because it puts out 6v instead of 4 to the subs) = more bass. :cool:


little Alpine


10in efx Competition Subs


Simple system but its easily some of the loudest 10s ive heard.


fr34kout

Member
Jan 6, 2012
662
Haha it's a monster sub but it needs monster power too. Running a Sundown 4500 @ 1 ohm and it still wants more >.>


Boricua SS

Member
Nov 20, 2011
3,080
Ohio
ok, i'll bite lol... although it all gets taken out when i hit the track...

Pioneer AVH4300DVD 7" touch screen DD HU


there is a rear mount USB for the radio and i utilized one of my cig lighters to house the port... nifty ehhh :rotfl:


aero ported box tuned to 38Hz...


now you know why the subs are off center,the port fires to the side... 2 12"American Bass DX's.. hit a 145.7db's on the mic


tweeters in the doors...



and finally.. the amps... 2 Kenwood 800 Watt amps.. one to each sub...
View attachment 19055


Attachments

  • 104_2889.jpg
    93.9 KB · Views: 21

Black_tb

Member
Dec 6, 2011
817
Boricua SS said:
ok, i'll bite lol... although it all gets taken out when i hit the track... Pioneer AVH4300DVD 7" touch screen DD HU

nice radio :rotfl::rotfl:


Boricua SS

Member
Nov 20, 2011
3,080
Ohio

Black_tb

Member
Dec 6, 2011
817
Boricua SS said:
:crackup:

looks mighty familiar ehhh???? :rotfl:

all yeah best radio ive ever had


STLtrailbSS

Member
Dec 4, 2011
1,617
Clean install B. Tweeters match up perfectly


BO TIE SS

Member
Nov 18, 2011
1,497
Nothing exciting with mine. Just the factory Bose system with 2 Infinity Basslinks. They add just enough bass to make me happy without eating up much of my cargo space.



Boricua SS

Member
Nov 20, 2011
3,080
Ohio
Black_tb said:
all yeah best radio ive ever had

Totally agree with you there!..

STLtrailbSS said:
Clean install B. Tweeters match up perfectly

Thank you kindly sir :tiphat:


xCricket12x

Member
Apr 2, 2012
3
I also vote on this being stickied. I'm currently in the process of rebuilding my system but heres a couple pics of my old ones.





cmatb08

Member
Jun 3, 2012
101
i dont have any new pics yet (posted some on trailvoy.com) but here is the run down of what we have and what we will be adding/changing let me know what you guys think.

pioneer 4300
orion 6.5 components
1 15.2 orion hcca
and a lanzar 3200 (it came with the sub when i got it)
the box is a pre fabbed atrend ported box

we are going to change the box make it a little bigger getting rid of the lanzar and get a memphis mojo 2500 add a bigger alt and two xs power batteries in the back to try and keep the volts up. ill get some pics taken and posted on here.
