Marks 3" before / after pics

Discussion in 'Lifted' started by Shaw520, Nov 6, 2017.

  1. Shaw520

    Shaw520 Well-Known Member

    Messages:
    111
    Likes Received:
    81
    Finally had the time yesterday to install Marks 3",.. install went off without a hitch,.. took bout 5 hrs total,.. its a well thought out kit that works well... thank you.

    05' Trailblazer w/142k,.. bone stock 4.2 with 235/16's

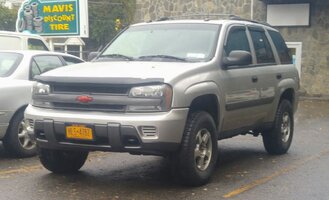

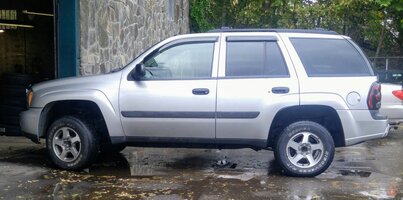

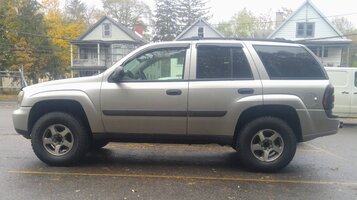

    Added; Marks 3" kit with 1.5" wheel spacers and 265/75R/16"s Cooper Discover M/S bonestock.jpg 1106171252a-2_resized.jpg 1106171515a-2.jpg



    Not sure why that one photo posted 4 times ???

    [Mod edit: Posts merged as they were all within 10 minutes of each other.]

    Last edited by a moderator: Nov 7, 2017
  2. jsheahawk

    jsheahawk Well-Known Member

    Messages:
    504
    Likes Received:
    169
    Because it was that awesome. :2thumbsup:

    Shaw520 likes this.
  3. djthumper

    djthumper Administrator

    Messages:
    13,822
    Likes Received:
    3,392
    Admin Post
    Looks good! I hope you got a front end alignment.

    Shaw520 likes this.
  4. Shaw520

    Shaw520 Well-Known Member

    Messages:
    111
    Likes Received:
    81
    Doing that today,..what do i need to know,..1 degree toe in ??

  5. Sparky

    Sparky Moderator

    Messages:
    10,824
    Likes Received:
    5,532
    If you flipped UCAs they should be able to get it in spec. But what happens when you lift is the camber goes positive so it will kill your outer tire edges very quickly (and affect cornering stability).

  6. Shaw520

    Shaw520 Well-Known Member

    Messages:
    111
    Likes Received:
    81
    I did flip UCA's..i also thought that i read somewhere in these pages that slight toe in is a good thing, or should i just let them do what they do best,..hoping for best possible results.
    Also,.. The rear axle now has a noticable offset to the passenger side...this shouldnt effect alignment, but i would like to recenter it..can someone recommend a track arm to re-center the rear axle?

  7. Matt

    Matt Silver Supporter

    Messages:
    2,741
    Likes Received:
    1,260
    You can either use drop brackets an adjustable panhard bar or both. You can get a Spohn for $125.

    Shaw520 likes this.
  8. Njg425

    Njg425 Active Member

    Messages:
    31
    Likes Received:
    25
    Well done. It looks great

    Shaw520 likes this.
  9. Shaw520

    Shaw520 Well-Known Member

    Messages:
    111
    Likes Received:
    81
    After a bit of research, Im thinking about burning (fabricating) a bracket on myself,... does anyone know the center/center bolt measurement of the drop ?

    Last edited: Nov 7, 2017
  10. Shaw520

    Shaw520 Well-Known Member

    Messages:
    111
    Likes Received:
    81
    Alignment done,... the guy at firestone said he "had his best guy do it,"... well it came out perfect,..steering wheel is straight and truck runs down the road perfect,..big improvement over pre-alignment for sure. Now im in touch with EricSS to get a drop bracket for the panhard bar.... that will get installed with the new HD Bilstiens.

    Matt and Sparky like this.
  11. Shaw520

    Shaw520 Well-Known Member

    Messages:
    111
    Likes Received:
    81

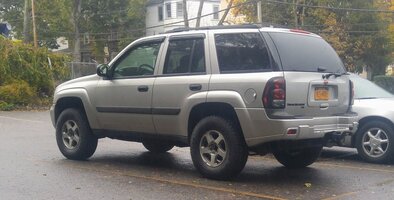

    Everyone loves photos 05 TB.jpg 05TB1.jpg

    Blckshdw, Mooseman, Redbeard and 4 others like this.
  12. Shaw520

    Shaw520 Well-Known Member

    Messages:
    111
    Likes Received:
    81
    After a bunch of reading i decided to go with the panhard bar drop bracket, some have suggested that although the adjustable bars will recenter the axle, the angle is still there, causing a different path of articulation,..makes sense.

  13. HARDTRAILZ

    HARDTRAILZ Moderator

    Messages:
    45,059
    Likes Received:
    11,388
    The bracket will still throw off the path of articulation. The proper fix is to do both, but being the adjustable worked for so many for years and the bracket seems to have worked for the past year; its kinda a toss up as to which is better if you only do one.

  14. Shaw520

    Shaw520 Well-Known Member

    Messages:
    111
    Likes Received:
    81
    I believe its the same theory as I went through with my Jeeps in the past,... keeping the track bar (panhard bar) as level as possible is best for articulation

  15. Sparky

    Sparky Moderator

    Messages:
    10,824
    Likes Received:
    5,532
    Yep. The more level the arm is at rest, the less side-to-side swing there will be when the suspension compresses or extends.

    A Watts Link would keep it perfectly vertical in its motion, but not sure if that would work well for off-road or not (clearances etc), and there isn't a pre-built unit for this platform anyway.

    Shaw520 likes this.
  16. HARDTRAILZ

    HARDTRAILZ Moderator

    Messages:
    45,059
    Likes Received:
    11,388
    Level is best, but that level also needs to have a bar the right length to center and the bracket at the right size. You are getting a one size fits most bracket that is about right. You could still benefit from the adjustable length bar unless you built your own bracket to exact specs of you lift.

    They say to use the same bracket for 1.5 inch rear lift as my 4 inch rear lift and I am certain the bar is not level in both cases.

  17. Shaw520

    Shaw520 Well-Known Member

    Messages:
    111
    Likes Received:
    81
    Yes,... true....and according to EricSS this bracket was spec'ed for a 2.5" lift. It'll be close enough for now,... if and when I go any higher (body lift), I'll cross that bridge when I get there.

  18. HARDTRAILZ

    HARDTRAILZ Moderator

    Messages:
    45,059
    Likes Received:
    11,388
    You know a body lift will have ZERO effect on the bracket or any suspension aspect right?

  19. Shaw520

    Shaw520 Well-Known Member

    Messages:
    111
    Likes Received:
    81
    Yes,.. I had presumed that through reading,,.. But i also imagine theres a slew of other mods, like steering.column,..brake pedal,.shift cable, ect. Ive completed suspension lifts on 3 prev owned jeeps,..but never a body lift.

  20. HARDTRAILZ

    HARDTRAILZ Moderator

    Messages:
    45,059
    Likes Received:
    11,388
    There is a steering extension that bolts in. No brake pedal or shift cable mods. There are brackets or spacers for radiator and bumpers, if you don't get MDB Fabrication ones. Only scary thing for some is cutting notches in rear frame rails for the brackets, but its simple.

    Shaw520 likes this.
  21. paul2005tb

    paul2005tb Well-Known Member

    Messages:
    135
    Likes Received:
    18
    I have purchased my 3in spacers and steering wheel extender from zoneoffroad. I have removed my front bumper and have noticed that lifting the bumper is for appearance only, there is no essential structural reason to do it. I think I am going to use cutters to refashion the plastic fascia so that it mounts 3in higher and properly mates with the raised body. I will use glue and 3in thick dense foam to get it nice and level. To do this the 5 openings/louvers/air ducts of the bumper moulding need to be trimmed down so the plastic front can properly accommodate the structural metal bumper. I have to believe that someone else has tried this. Is it worth it ?

    Last edited: Nov 19, 2017 at 1:11 PM
  22. Shaw520

    Shaw520 Well-Known Member

    Messages:
    111
    Likes Received:
    81
    Is there a body kit that you can recommend ?

  23. HARDTRAILZ

    HARDTRAILZ Moderator

    Messages:
    45,059
    Likes Received:
    11,388
    The only kit available now is the 2 inch from Zone Offroad and it works great. It is what I started with before we developed the 3 inch that is no longer in production.

    Shaw520 likes this.
