Amazon Product Hantek Model # 6022 High Sample Rate Dual Channel "O" Scope @ $65.99

[mrrsm]

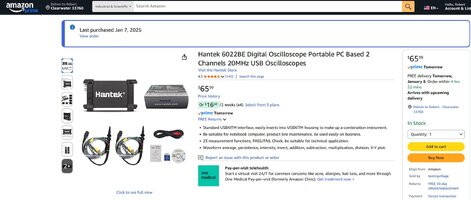

This is an AWESOME Deal for any Fledgling or Experienced Oscilloscope Users wanting a POWERFUL and INEXPENSIVE Hantek Unit Model# 6022 at a VERY LOW PRICE of $65.99 ...normally around $180.00:

Hantek 6022BE - sigrok

sigrok.org

For Linux Users:

Post #111:

Thread 'How To Use PICO #2204A & HANTEK #1008C Oscilloscopes'

Oct 20, 2019

You don't need a Huge Bag of Coins in order to obtain and use an Oscilloscope for performing In-Depth Wave Form Analysis in Automotive Applications on everything from Problematic Electronic Fuel Injection to obtaining accurate Compression Tests to Diagnose Internal Engine Conditions.

HANTEK makes (...and Amazon, eBay and OTHER Outlets sells) ALL of the discreet equipment components necessary to accurately conduct these types of Automotive Diagnostics ... and all can obtained on a Very Modest Budget.

The Basic Oscilloscope Hardware is listed below:

(1) Windows or surprisingly... a...

• mrrsm
• Replies: 112
• Forum: Technical Discussion

•

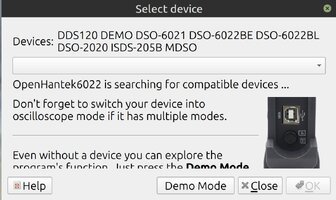

Easily installed using the "GDEB" Linux Installer... for THIS Screen to access the New Hantek Hardware!



[mrrsm]

Just confirming that the Debian (Ubuntu & Linux Mint) flavor of the New Hantek Open Source App called "OpenHantek6022" works like a charm!

For Linux Users Only...The Windows versions of this Software are available from the Hantek Home Page... THIS Link has all of the links to the Linux Users Various Installation Options for FreeBSD, MAC-OS and other Linux Versions:

GitHub - OpenHantek/OpenHantek6022: OpenHantek6022 is a DSO software for Hantek USB digital signal oscilloscopes 6022BE / BL. Development OS is Debian Linux, but the program also works on FreeBSD, MacOS, RaspberryPi and Windows. No support for non-Li

OpenHantek6022 is a DSO software for Hantek USB digital signal oscilloscopes 6022BE / BL. Development OS is Debian Linux, but the program also works on FreeBSD, MacOS, RaspberryPi and Windows. No s...

github.com

The Demo portion of his App ... Works Like Charm with NO SW Glitches...and even though it is NOT Automotive Application Specific... Most of the Instructional Videos on Auto Diagnostics will provide you with the general "Voltage Over Time" Settings needed. It IS Pretty Damned Cool Stuff!

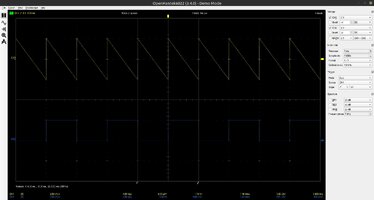

This is a Screen Print of the Demo App running on my Dell Precision 7760 Work Station Wide Screen Laptop with both Channel A and Channel B running their unique Wave Form Patterns so the SW can be played with:
